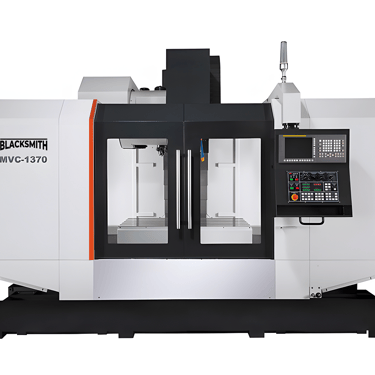

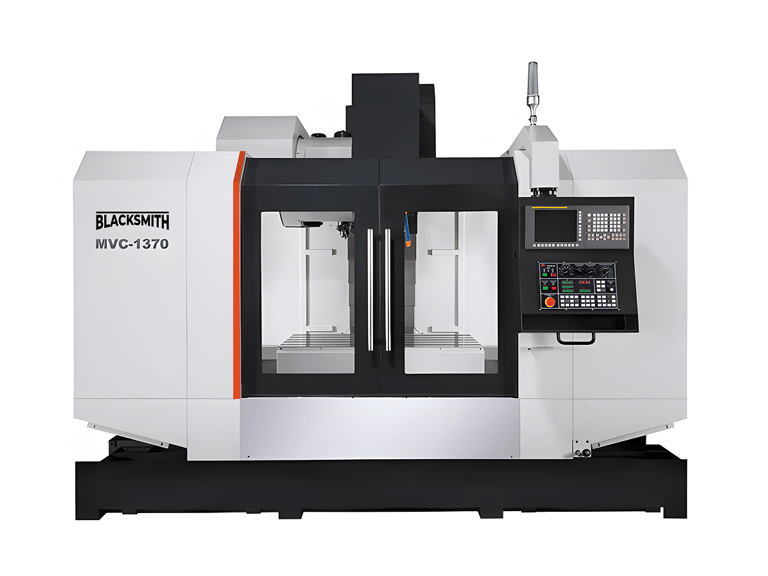

MVC-1370 Box Way Vertical Machining Center

glass panel high-rise building under blue sky with sun raise

Box-type structure, P4-class spindle bearings, spindle sleeve is machined from SCM4, high rigidity, and heavy cutting.
Use the world certificated Meehanite Casting, strengthen the internal ribs, and through annealing treatment to get a high stability and no deformed casting. The hardness is up to HRC 52°±3°。
Suitable for heavy cutting, and machine huge molds, high hardness workpiece, normal accuracy requirement workpiece.
GearBox Head for models with -G suffix delivering high torque cut

STANDARD ACCESSORIES

Alarm light
Arm type ATC
Remote MPG
Full enclosure
Rigid tapping
Spindle oil cooler
Tool box with tool kits
RS232 Interface
Heat exchanger
Coolant flushing system
A.I.Contour Control
Auto lubricating system
Auto power off system
Metal telescopic cover
Cutting liquid defector
Screw type chip conveyor (with tank)
Level adjusting bolts and pads
Spindle auto flush / air blast device
Handle flush and air blast device

OPTIONAL ACCESSORIES

Air-conditioner
Coolant ring
C.T.S (coolant thrugh spindle)

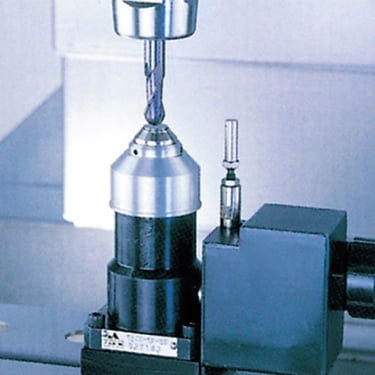

Tool setter
Rotary table 4 or 5 Axis
Oil-water separator
Spin window
Boat type chip conveyor (with tank)

Box Way Rigid
Deep Cut
Stable Motion
